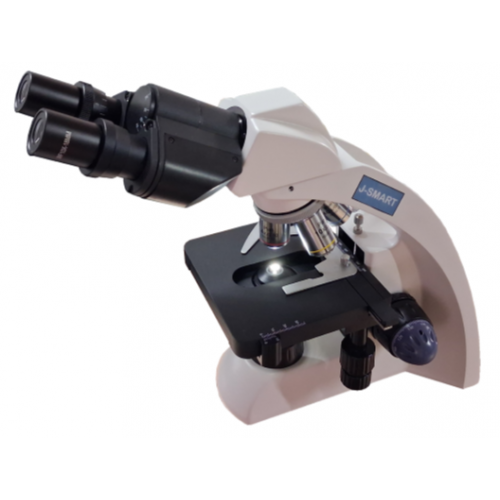

Extensive experience of JC LAB optical engineers has contributed to the development and implementation of the J-SMART series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the J-SMART series are especially developed for educational purposes with primary focus on ergonomic and today’s quality standards

The JIS DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm JIS DIN objectives of the J-SMART models generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 120 x 120 mm plain stage and 130 x 130 mm stage with double layered 70 x 28 mm X-Y mechanical stage enable a 2 μm precision positioning of the specimen

Features:

• Eyepiece WF10x/18mm
• Provided with APL (Antimicrobial Protection Layer)
• J-VIS Plan Achromatic objective  PL4x, PL10x, PL40x, PL100x
• Quadruple nosepiece
• Build-in double layers mechanical stage 126 x 110mm
• Spiral mounted 1.25NA condenser with iris diaphragm and filter holder

• Illuminator LED (Cold Light)
• Working Distance 2-195mm
• Adjustment Distance 0.5mm
• Focusing Coaxial coarse (22mm) & fine adjustment (0.0002mm)
• Rechargeable LED illumination with intensity adjustment

Technical specifications
