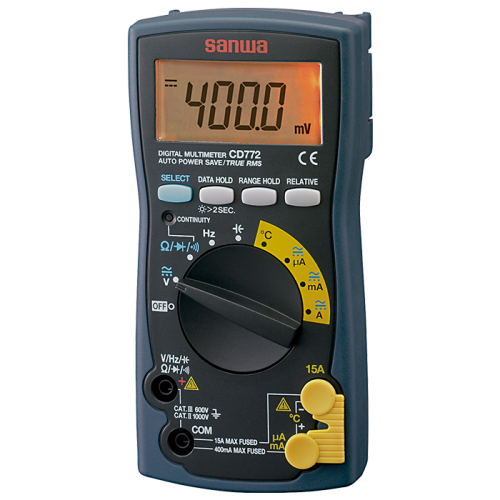

• LCD Digital Multimeter (SANWA)

Description

  • 4000 counts
  • Easy to read large LCD with backlight
  • Large breaking capacity fuse 30kA
  • K type thermocouple temperature measurement -20℃ ~ 300℃
  • Thermo plastic elstomer, high resistance against drop shock
  • Safety cap on current terminal
  • Auto power off (30min.)(cancelable)


CD772Measuring rangeBest accuracyResolutionInput impedance
DCV400m/4/40/400/1000V±(0.5%+2)0.1mV10M~100MΩ
ACV4/40/400/1000V±(1.2%+8)0.001V10M~11MΩ
DCA400μ/4000μ/40m/400m/4/15A±(1.4%+3)0.1μA
ACA400μ/4000μ/40m/400m/4/15A±(1.8%+6)0.1μA
Resistance400/4k/40k/400k/4M/40MΩ±(1.2%+5)0.1Ω
Capacitance50n/500n/5μ/50μ/100μF±(5%+10)0.01nF
Temperature-20°C~300°C±(3%+30)0.1°C
Frequency5/50/500/5k/50k/100kHz±(0.3%+3)0.001Hz
ContinuityBuzzer sounds and LED lights up at between 0Ω and 85Ω(±45Ω).Open voltage:Approx.0.4V
Diode testOpen voltage:approx.1.5V
Displaynumeral display 4000
Sampling rate3 times/sec.
Bandwidth45~500Hz(4V range)、45~1kHz(40V range and above)
Fuse0.5A/1000V 30kA Φ6.35×32mm
16A/1000V 30kA Φ10×38mm
BatteryR6Px2
Battery lifeApprox.150h (manganese battery) at DCV range
Size/MassH166×W82×D44mm/360g
SafetyIEC61010CAT.Ⅲ600V/CAT.Ⅱ1000V
