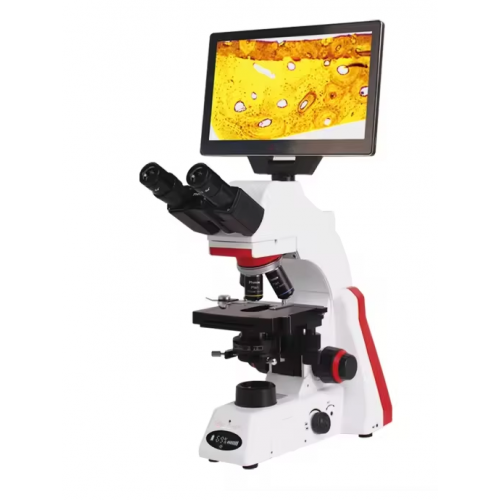

The BIMC-12DMH21 is a biological microscope with beautiful appearance and excellent cost performance. It is ideal for use in the biological and Laboratory fields. It can be used in health institutions, laboratories, research institutes, colleges and universities for biological and pathological education and professional research, clinical experiments and routine medical tests.

Features:

30° inclined Binocular Siedentopf head for comfortable viewing while seated
Interpupillary distance adjustment between 52-75mm
Eyepiece: WF10X/18 x 2, WF 16X/12 x 2
Reversed quadruple nosepiece with click stops
Objective: JPL SmartVision™ Plan Achromatic Objective 4X, 10X, 40X, 100X(S)(oil)
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
Vertical travel Range 20mm
Double Layers Mechanical Stage 136 x 136mm ，Travel Range 70 x 30mm
Abbe Condenser NA1.25 with Aperture Diaphragm
3W S-LED Illumination, Brightness Adjustable

Technical specifications

Optical system	Finite Optical System, 200mm
Observation tube	Binocular
Inclination	30° inclined
Eyepiece(s)	WF 10x (18mm), WF 16x (12mm)
Nosepiece	Reversed quadruple revolving nosepiece with click stops
Objective classification	JPL SmartVision™ Plan Achromatic, DIN
Objective information	4x NA=0.1 WD=18, 10x NA=0.25 WD=7, 40x (s) NA=0.65 WD=0.53, 100x (s)(oil) NA=1.25 WD=0.13
Objective mounting thread	W 4/5" x 1/36" (JIS standard)
Stage	Double Layers Mechanical Stage 136X136mm, Moving Range 70X30mm
Upper limit stop	Upper limit stop preset but adjustable

Condenser	Abbe Condenser NA1.25 with Aperture Diaphragm
Focus mechanism	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Illumination	3W S-LED Illumination
Transformer	Internal
Power supply	100 - 240V (CE)
Accessories included	Dust cover
Packing Size	380 x 240 x 520mm (L x W x H)
Weight (kg)	8.5

Digital Screen	10.5" LCD（4000*3000）, J-core 2.4G processor
Connection	Support WiFi wireless and bluetooth. It’s easy to extend the application.
Image Output	USB2.0 、3.0、HDMI、Gigabit Network Port
System	Android 11
